Specification of 48v Stackable LiFePO4 Battery |
||||
|
Model |
48V 100AH |
48V 200AH |
48V 300AH |
48V 400AH |
|
Battery Module QTY (pcs) |
48V 100AH*1 |
48V 100AH*2 |
48V 100AH*3 |
48V 100AH*4 |
|
Rated Energy |
4.8kWh |
9.6kWh |
14.4kWh |
19.2kWh |
|
Voltage Range |
42~54.75V |
42~54.75V |
42~54.75V |
42~54.75V |
|
Fast Charge Voltage |
54.0V |
57.6V |
57.6V |
57.6V |
|
Float Charge Voltage |
56.0V |
54.0V |
54.0V |
54.0V |
|
Discharge cut-off Voltage |
42.0V |
42.0V |
42.0V |
42.0V |
|
Max. continuous discharge current (A) |
100 |
200 |
300 |
400 |
|
Max. pulse discharge current (A) |
150A |
300A |
150A |
600A |
|
Max. continuous charge current (A) |
50 |
100 |
150 |
200 |
|
Cycle life (+25℃ 0.2C 100% DOD) |
6000 |
|||
|
IP degree |
IP20 |
|||
|
Working Temperature |
-10℃~+50℃ |
|||
|
Humidity |
0~95% (no condensation) |
|||
|
System Weight (NK kg) |
46.0kg*1 |
46.0kg*2 |
46.0kg*3 |
46.0kg*4 |
|
System Weight (GK kg) |
50.0kg*1 |
50.0kg*2 |
50.0kg*3 |
50.0kg*4 |
Main feature of Tenry 48v Stack-able LiFePO4 battery:
1. With BMS to protect battery from over charging, over discharging, over current, short circuit and over temperature.
2. Safe and eco-friendly.
3. Stack-able with rolly design.
4. Super long 5000+ cycle life.
5. Lithium iron phosphate battery cells with prismatic shape.
6.Use only grade A cells with real capacity to keep a good working performance and service life.
7. 3-10 years guarantee.
8. Easy installation, support 4.8kw to 30kw all in one solar energy storage system, easy to install, and with all cables needed for connection, all users or buyers could receive the lithium battery installation instruction.

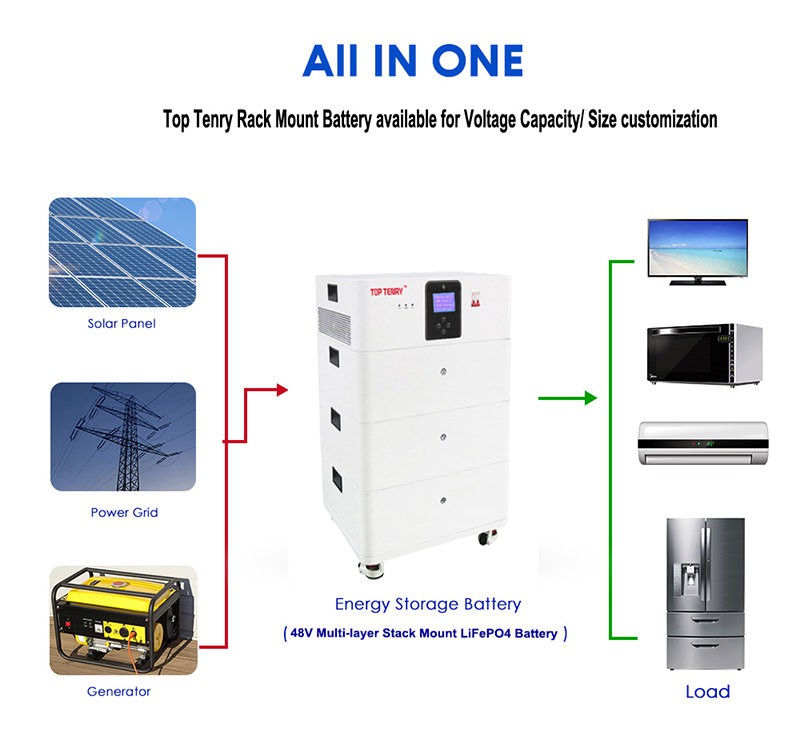

Main Application:
The 48v Stack-able LiFePO4 battery can mainly be used for UPS back up power supply, residential energy storage system, commercial energy storage system, industrial ESS, communication base station, etc.
Battery Handling Cautions:
1. Do not dispose the battery in fire or expose to the heat.
2. Do not reverse connection the battery.
3. Do not short circuit the battery.
4. Do not disassemble the battery.
5. Do not mix the battey with other type.
6. Do not put battery in water or get it wet.
7. Do not use unquialified charger to charge the battery.
8. Please use the battery under the right temperature range and right discharge current range.
