Spedification of 48v 50ah golf cart battery |
|
|
Cell Model |
LF3.2V/50Ah |
|
Charge Voltage |
58.4V (3.65V/Cell) |
|
Discharge cut-off Voltage |
40V (2.5V/Cell) |
|
Nominal Voltage |
51.2V (3.2V/Cell) |
|
Minimum Capacity |
50Ah @ 0.5C discharge |
|
Nominal Capacity |
50Ah @ 0.5C discharge |
|
Nominal Energy |
2560Wh @ 0.5C discharge |
|
Continuous Charge Current |
10A |
|
Max Charge Current |
25A |
|
Max Continuous Discharge Current |
100A (Peak 200A 35s) |
|
Weight |
About 27kgs |
|
Storage temperature |
Less than 1 year: 0~25℃, Less than 3 months: -5~35℃ |
|
Storage humidity |
60±25% R.H. |
|
Communication protocol |
CAN, GX16-6 |
|
Discharge temperature |
-20~60℃ |
|
Charge temperature |
0~45℃ |
|
Cell type |
LiFePO4 |
|
Charge efficiency |
Over 98% |

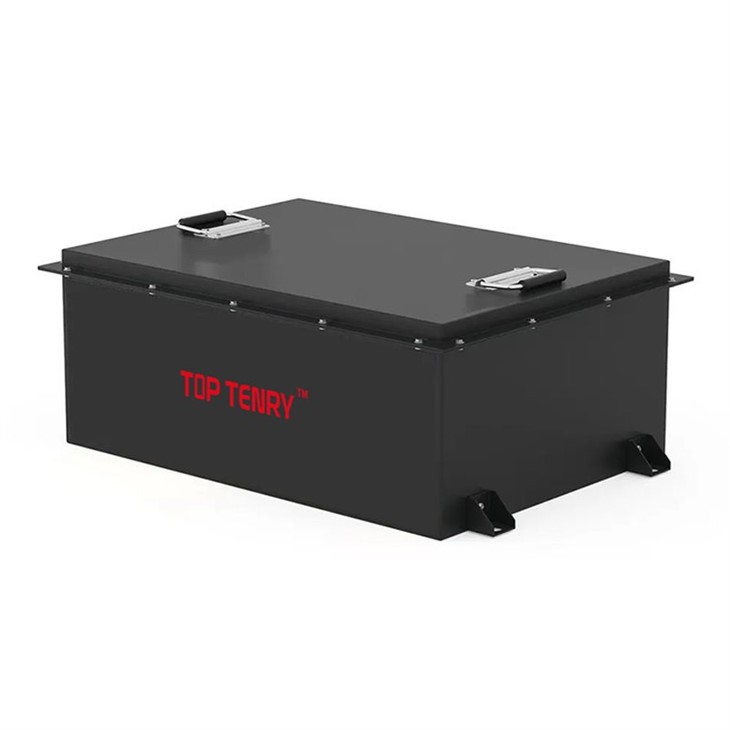

Main Feature of our Tenry 48v 50ah golf cart battery:
1. Cycle life is over 4000 times at 80% DOD.
2. Use Grade A first rank lithium iron phosphate cells.
3. With smart BMS to control and detect the battery status.
4. Safe and reliable.
5. Totally environmental friendly.
6. Customized design, we can customize the capacity, voltage, size, connectors, etc according to your request.
7. Cell balancing and low voltage/over voltage protection, short-circuit protection.
8. Maximize your energy potential with 100% Depth of Discharge (DOD).
Main Application:
This 48v 500ah lithium ion battery can be mainly used for golf carts, it is with smart BMS control, could bare high discharge current with good performance, and it is free maintenance, and the capacity is actually higher than 50ah, with our battery pack back up, your golf cart could drive longer.
Payment Terms:
Normally we accept T/T 30% deposit, balance to be paid before shipment, for other payment way, please contact us to negotiate.
Battery Handling Cautions:
1. Do not dispose the battery in fire or expose to the heat.
2. Do not reverse connection the battery.
3. Do not short circuit the battery.
4. Do not disassemble the battery.
5. Do not mix the battery with other type.
6. Do not put battery in water or get it wet.
7. Do not use unqualified charger to charge the battery.
8. Please use the battery under the right temperature range and right discharge current range.
